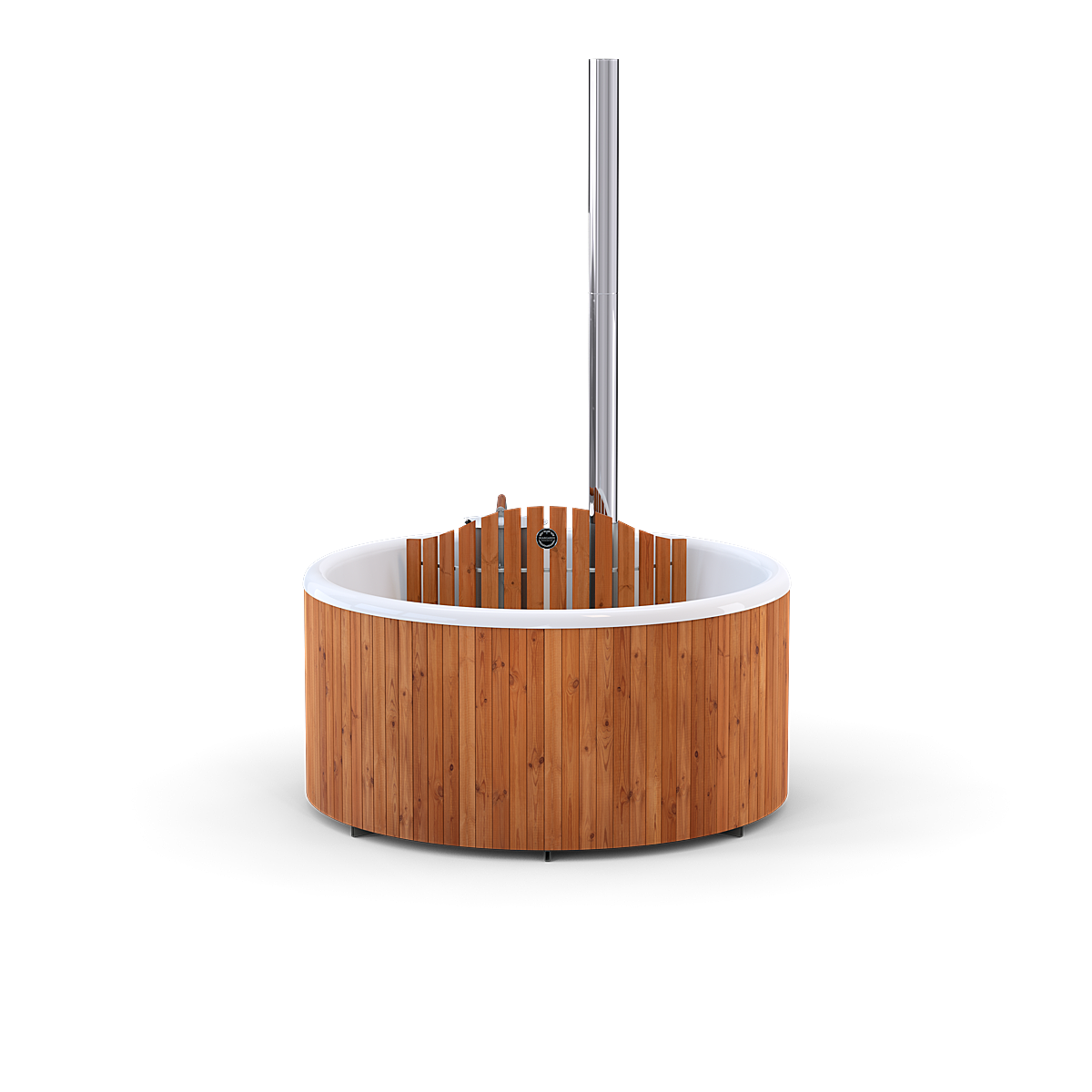

Panel 190 Specification

Please note that heating times vary depending on multiple factors such as outside temperature, wood type, initial water temperature, etc.

Note that these are maximum seating capacities. For more freedom of movement, Skargards recommends planning for 2-3 persons below the maximum capacity.

This number is for a full hot tub without persons. With people inside, you need less water. We recommend to fill the tub with water up to 80% capacity.

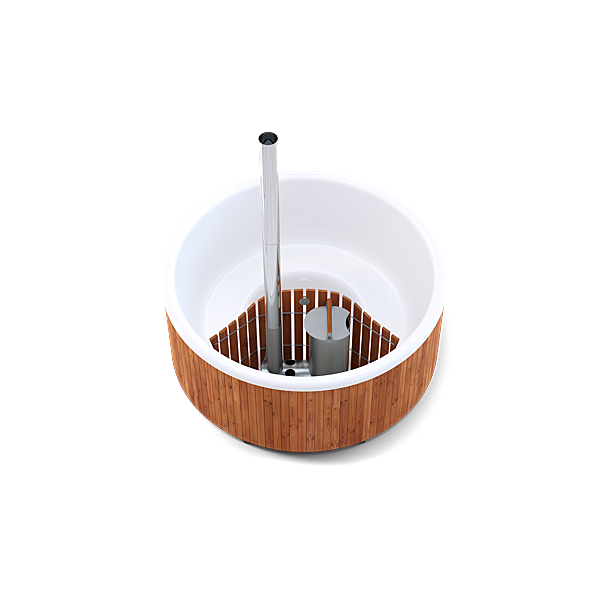

The Panel stove improves on the proven concept of traditional wooden hot tubs. As such, it is submerged in the bathing water to heat it directly and effectively. The main barrel contains the fire. A draft pulls air into the stove, thus optimising combustion and leading the smoke out through the flue. The stove lid is specially designed to adjust air intake for temperature control.

Skargards' signature ergonomic tub is crafted with 5 layers of glass fibre reinforced plastic because it is a strong, durable and lightweight material.

All Skargards hot tub cladding and wooden accessories are made of eco-certified Thermowood® sourced from Scandinavia. The environmentally-friendly thermal process confers strong weather- and mould-resistant properties. According to the Building Research Establishment (BRE), the expected service life of Thermowood® is over 30 years.

The Panel features a robust base frame made of galvanised steel. There is a circular foot in the centre that is surrounded by 7 or 8 feet on the edge of the hot tub. The feet are 4 cm in height so that hoses and wires can be led out at any point. This elevation also optimises air flow between the cladding and the tub, which in turn prevents condensation.

Hidden from sight, the drain is located to the left of the stove behind the wooden fence. A string connects the plug to a floater at the surface of the water. Emptying the water is as simple as pulling the floater. A 2-meter hose is included to direct the water outflow.

The Panel is delivered fully assembled and equipped with everything you'll need. All hot tubs from Skargards are built for long-lasting durability, produced with the highest quality materials. Each hot tub can be complemented with accessories such as an insulated lid, a side table and steps.

Standard features

• Direct heating wood stove made of AISI 316 stainless steel
• Ergonomic fibreglass tub
• Easy clip-on fence
• Galvanised steel base frame
• Sustainably-sourced, eco-certified Thermowood® cladding
• Fine-polished stainless steel flue
• Draining plug with floater

Every Skargards hot tub is designed and produced in Åmål, Sweden with the near-exclusive use of Scandinavian materials.

Get instant access to the Skargards instruction manual for the Panel hot tub.

Panel

• Download PDF
